High Quality With China Price Solar Panel Frame Forming Machine

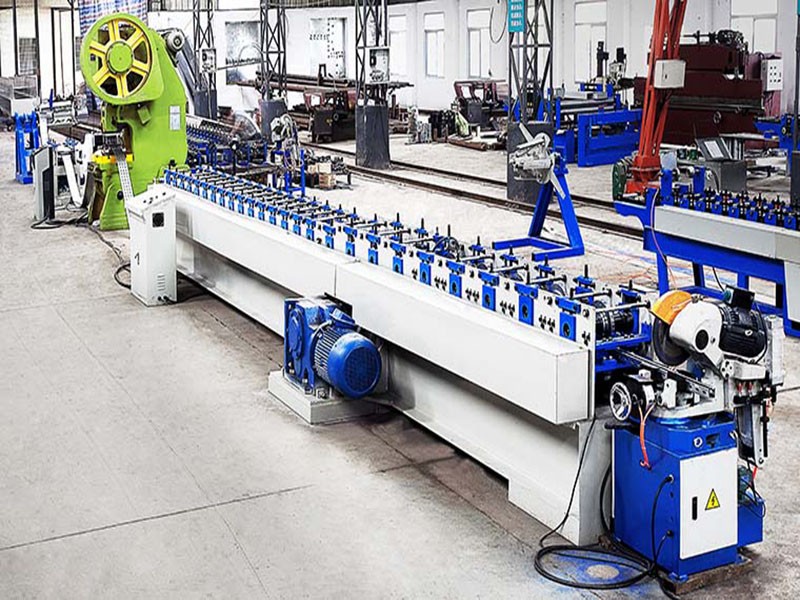

               Solar Panel Frame Roll Forming Machine

1.Main features of solar panel frame roll forming machine

    The advantages of solar panel frame roll forming machine are as follows:

    1.Accuracy Profile

    2.Two profile in one machine, economic solution and space saving.

    3.Easy operation, low maintenance cost

    4.Beautiful appearance.

2.Detailed Images of solar panel frame roll forming machine

    Machine Parts

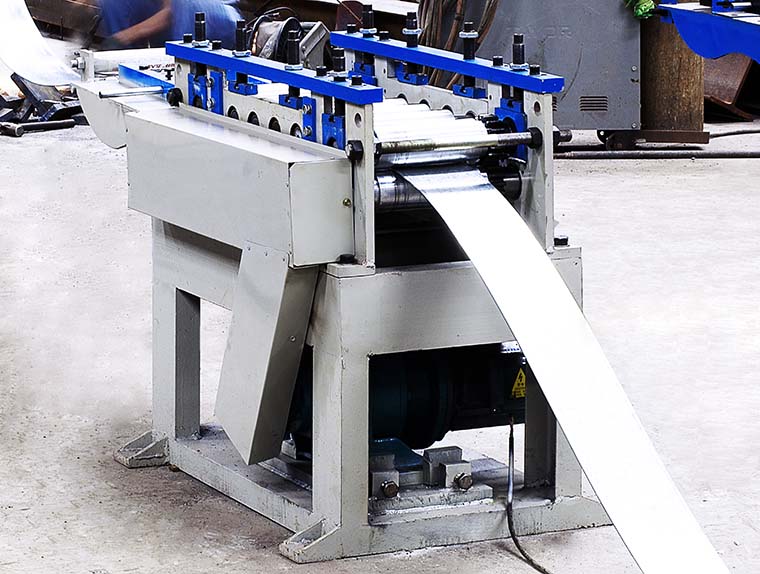

        1) Solar panel frame roll forming machine straightened device

        Brand: BMS    Original: China

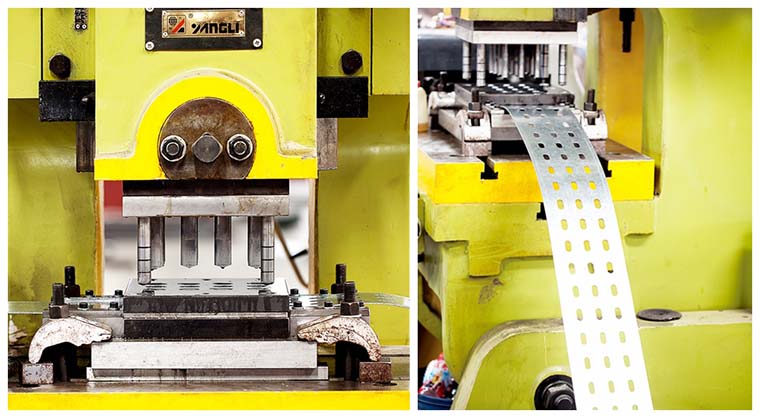

        2) Solar panel frame roll forming machine puncher and the step into device

        Servo-drive,punching motor=3.7KW,feeding material

        63T pre-punching hole device, one set punch hole mold

        Punching:China YANGLI

                                                            Puncher

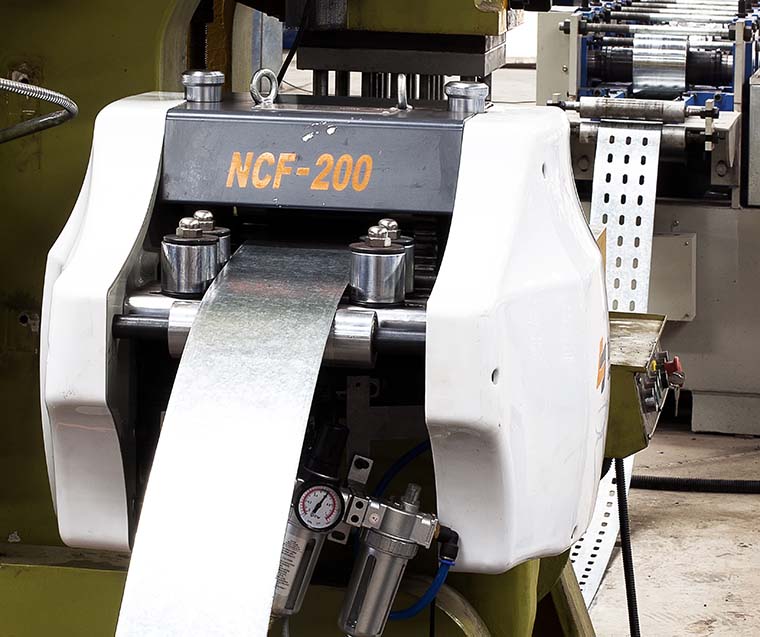

                                                          Step into device

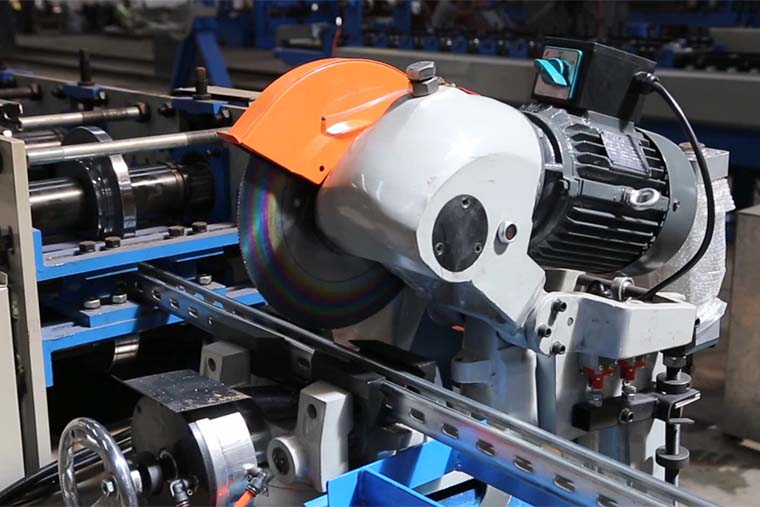

        3) Solar panel frame roll forming machine pneumatic saw cutting device

        Sawing motor: 3kw   Sawing Device:China JIEDE

        Cutting Blade Material:high speed steel cutting blade

        Performance guarantee: Cutting should be smooth after adjustment.

        With matched gas valve

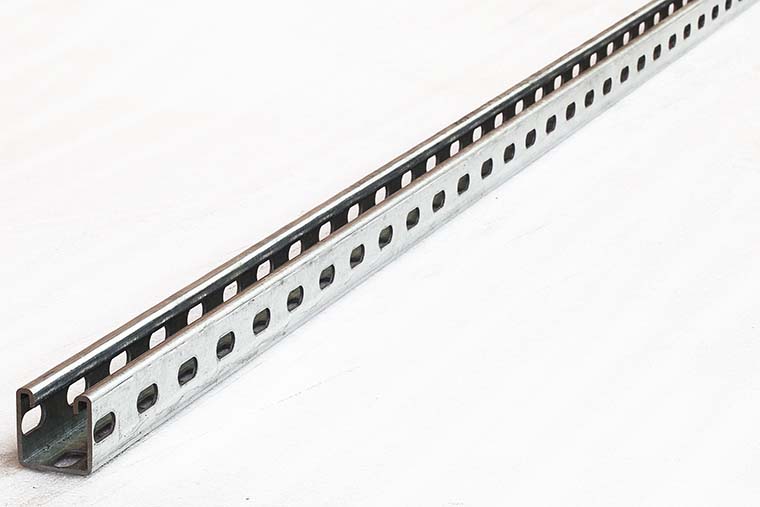

        4) Solar panel frame roll forming machine product show

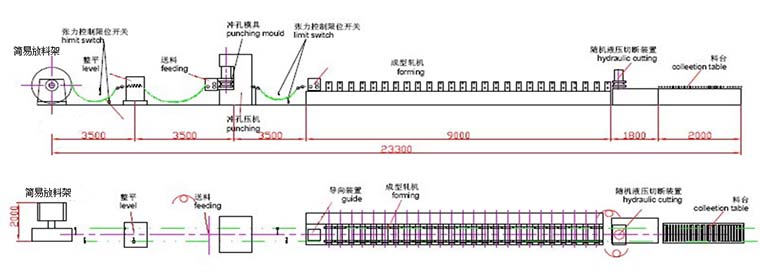

        5) Solar panel frame roll forming machine forming flow chart

        Decoiler---Straightened Device--Punching Machine、Stepped Device/Mold--

        Auto Stop Device--Roll Forming Mill--Sawing device--PLC Control--Rack Exit

        6) Metal door frame roll forming machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton

        With 3 tons hydraulic decoiler for option

        7) Solar panel frame roll forming machine exit rack

        Un-powered,3 meters long ,one unit

Other detailes of solar panel frame roll forming machine

Suitable for material with thickness 2.0-2.5 mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form.

Main motor=11KW , Frequency speed control. Forming speed approx.8-12m/min

PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English

After-sale service of solar panel frame roll forming machine

1. The warranty of solar panel frame roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
